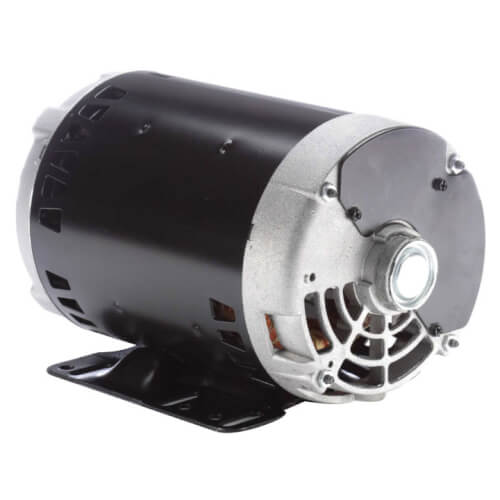

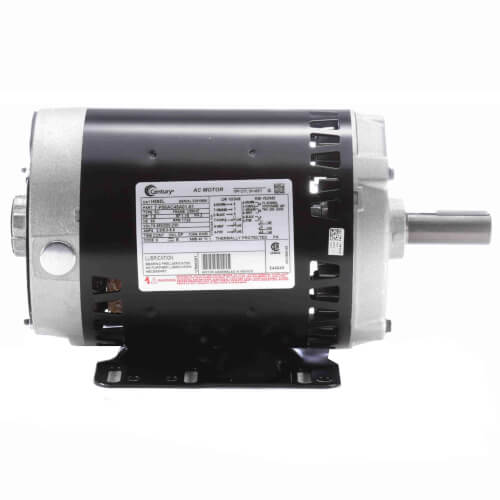

6-1/2" 3-Phase OPD Motor (460/200-230V, 1725 RPM, 1-1/2 HP)
Features:
- Three Phase
- Auto Protector
- Class B Insulation
- Double Sealed Ball Bearing
- Reversible
- 40[DEG]C Ambient
- Service Factor: 1.15
Compatibility & Applications:
- Intended for HVAC applications that require a dual run capacitor with 30/5 MFD and 440/370V ratings .
- Must only be used where the manufacturer specifies this exact part number: 12781.
Installation & Operation Notes:
- Installation should be performed by a qualified HVAC technician.
- Reference the controlled equipment's service/installation manual to confirm the required capacitor ratings and proper terminal connections before energizing the system.
- The provided sources do not include detailed wiring diagrams or safety procedures; follow equipment documentation and standard capacitor handling practices appropriate for HVAC service.
Maintenance & Troubleshooting:
- This capacitor is typically replaced when diagnostics indicate a run capacitor is out of specification or when motor operation issues are traced to the dual run capacitor (diagnostic procedures are not provided in the supplied sources).
- If issues persist after replacement, confirm the installed capacitor matches the required MFD and voltage ratings and that all connections are correct per the equipment documentation.
Certifications & Compliance:
- Manufacturer listing states UL & cUL for these capacitors.
User Reviews & Q&A Summary:
- Review themes commonly describe it as a correct replacement capacitor that restores cooling operation when a failed capacitor is replaced.
- Many comments focus on getting the right part quickly and returning equipment to service, with frequent notes about straightforward replacement once the correct rating is confirmed.
Product Highlights
460/200-230VÂ Â Â
1800, 1725 RPM Â Â Â
RCCW Â Â Â
1-1/2 HP Â Â Â
Rigid Base
2.8/5.0-5.6, 5.6, 2.8, 5 AmpsSpecs
| Type: | Induction Run Polyphase Single or Dual Voltage |
|---|---|
| Horse Power: | 1-1/2 |
| Bearings: | Ball |
| Voltage: | 460/200-230V |
| Duty: | Continuous |
| Speeds: | 1 |
| RPM: | 1800 1725 |
| Rotation: | RCCW |
| Phase: | 3 |
| Mount: | Rigid Base |
| Frame: | 56HZ |
| Hertz: | 60 |
| Amperage: | 2.8/5.0-5.6 5.6 2.8 5 |
| Overload Protection: | Thermally |
| Insulation Class: | B |
| Enclosure Type: | Drip Proof |
| Poles: | 4 |
| Max Ambient Temp (°F): | 104°F |
