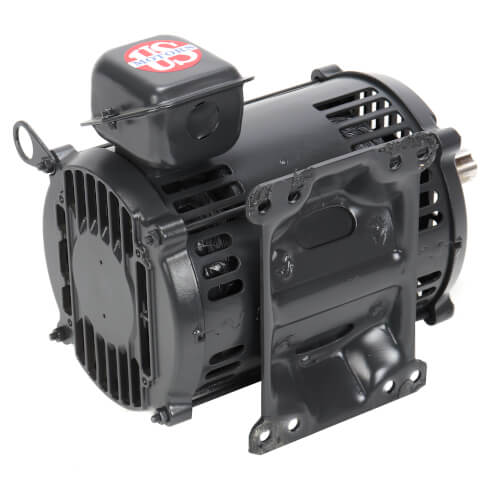

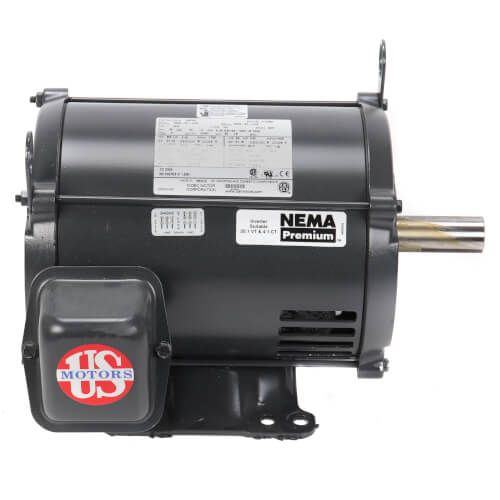

For pumps, fans, compressors, material handling, and other general purpose applications where contaminants are minimal.
Features:
- WORLDMOTOR Features Except Where Noted, and on 200V & 575V Motors
- Class F Insulation, Class B Rise At Service Factor
- Rolled Steel Frame 56-320, Cast Iron Frame 360-440
- Aluminum End Shields 56-250, Cast Iron End Shields 280-440
- "CE" Mark On Nameplate (140 Frame & Larger)
- 40°C Ambient, NEMA†Design B Performance On 60 Hz Sine Wave Power
- 1.15 Service Factor
- Regreasable Bearings 180 Frame & Up
- Double Shielded Bearings 140-400, Open on 440
- Bearing Caps On 400 & 440 Frames
- F1 Assembly Position except where noted
- Lifting Provisions 210 Frame & Up
- Conversion Kits: Drip Cover Kits (140-320 Frame)
Compatibility & Applications:
- Intended for HVAC applications that require a dual run capacitor with 30/5 MFD and 440/370V ratings .
- Must only be used where the manufacturer specifies this exact part number: 12781.
Installation & Operation Notes:
- Installation should be performed by a qualified HVAC technician.
- Reference the controlled equipment's service/installation manual to confirm the required capacitor ratings and proper terminal connections before energizing the system.
- The provided sources do not include detailed wiring diagrams or safety procedures; follow equipment documentation and standard capacitor handling practices appropriate for HVAC service.
Maintenance & Troubleshooting:
- This capacitor is typically replaced when diagnostics indicate a run capacitor is out of specification or when motor operation issues are traced to the dual run capacitor (diagnostic procedures are not provided in the supplied sources).
- If issues persist after replacement, confirm the installed capacitor matches the required MFD and voltage ratings and that all connections are correct per the equipment documentation.
Certifications & Compliance:
- Manufacturer listing states UL & cUL for these capacitors.
User Reviews & Q&A Summary:
- Review themes commonly describe it as a correct replacement capacitor that restores cooling operation when a failed capacitor is replaced.
- Many comments focus on getting the right part quickly and returning equipment to service, with frequent notes about straightforward replacement once the correct rating is confirmed.
Product Highlights
208-230/460v
1800 RPM Â Â Â
5 HPSpecs
| Type: | DE |
|---|---|
| Voltage: | 208-230/460v |
| Horse Power: | 5 |
| RPM: | 1800 |
| Phase: | 3 |
| Frame: | 184T |
| Enclosure Type: | Open Drip Proof |
Reviews
Clear filtersThere are no reviews yet.
