Please note: This SKU is a direct replacement for 50A50-241

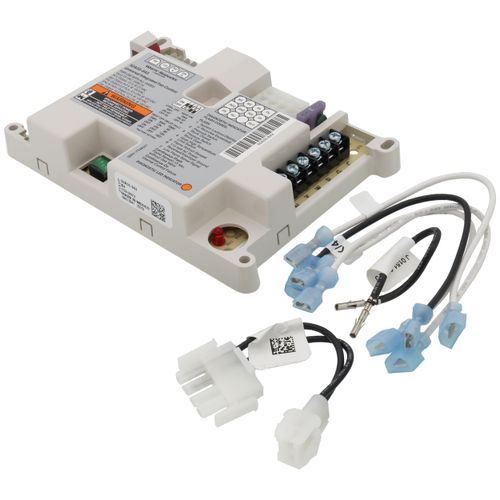

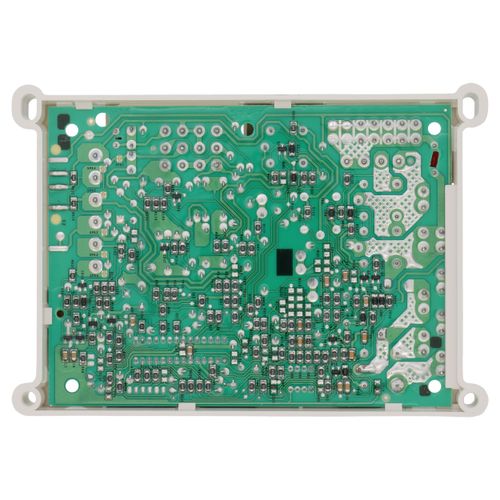

The 50A55-843 Universal Silicon Carbide Integrated Ignition module employs a microprocessor which continually monitors, analyzes and controls the proper operation of the gas burner, inducer and fan. The Universal Module includes an extensive cross-reference, additional jumper wires, an additional wiring harness and a jumper for Trane applications. The module also has terminals for powering a humidifier and electronic air cleaner.
Specifications
- Input Voltage: 25 VAC 50/60 Hz
- Maximum Input Current: 25 VAC . 0.45 amp
- Valve Relay: 1.5 amp @ 25 VAC 50/60 Hz 0.6 pf
- Ignitor Relay: 6.0 amp @ 120 VAC 50/60 Hz (resistive)
- Inducer Relay: 2.2 FLA - 3.5 LRA @ 120 VAC
- Circulator Relay: 14.5 FLA - 25.0 LRA @ 120 VAC
- Operating Temperature Range: -40 to +175°F (-40 to +79°C)
- Humidity Range: 5% to 93% relative humidity
Features
- Includes flash code diagnostics
- Fused to protect low voltage system transformers
- Includes mounting hole template
- Input Voltage - 25 VAC 50/60 Hz
- Adjustable blower relay
Performance Specs & Compatibility
- Ports: 4-port manifold (high, low, vacuum, charge)
- Use: Charging, recovery, evacuation with micron verification
- Refrigerant library and temp inputs per Fieldpiece specifications
Why SM482V Stands Out
- Full-featured SMAN platform with 4-port flexibility plus onboard micron measurement.
Certifications & Compliance:
- Meets ARI 780/790 Standard
User Reviews & Q&A Summary:
- Common theme is "correct part" for the intended replacement, with users reporting it worked as expected after installation
- Review feedback frequently mentions straightforward installation for a direct replacement
- Value and fulfillment are recurring positives (good deal/price and fast shipping)
Product Highlights
Intermittent Hot Surface Pilot
Specs
| Ignition Type: | Intermittent Hot Surface Pilot |
|---|
Reviews
Clear filtersThere are no reviews yet.
