Low Pressure Switch, 47-102876-03

SKU: 47-102876-03

$35.61each

Add to wishlist
Compare
13 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Reviews (0)
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “Low Pressure Switch, 47-102876-03”

Your email address will not be published. Required fields are marked *

Description

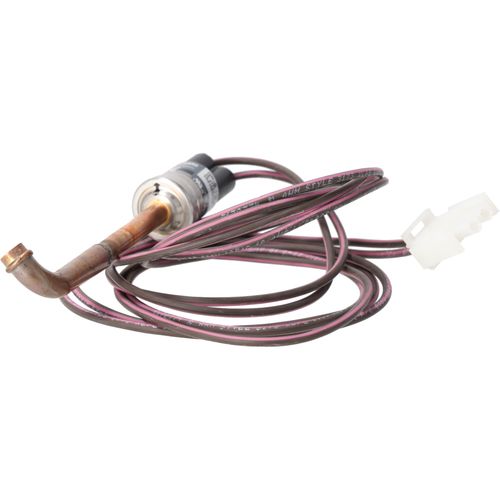

47-102876-03 is a Low Pressure Switch manufactured by Rheem.

Features:
  • Low pressure SPST open on pressure fall
  • 1/4" SAE female flare fitting with valve core depressor
  • Snap acting stainless steel hermetically sealed sensor (SHP, SLP, and SFC)
  • Small size and light weight for direct mounting
  • Excellent set point repeat-ability/stability
  • Pressure range: 0 to 650 PSI
  • Burst pressure: 5000 PSI
  • Life at rated load: 100,000 cycles
  • Rated Voltage: 50/60 Hz, 24/120/240 Volts (6 RLA, 36 LRA)
  • Temperatures: Ambient 20°F to 176°F (-30°C to 80°C). Fluid 60°F to 250°F (-50°C to 120°C)

Features:
  • Tamper proof construction
  • Direct mounting on tubing
  • UL & CSA recognized


Performance Specs & Compatibility

  • Ports: 4-port manifold (high, low, vacuum, charge)
  • Use: Charging, recovery, evacuation with micron verification
  • Refrigerant library and temp inputs per Fieldpiece specifications

Why SM482V Stands Out

  • Full-featured SMAN platform with 4-port flexibility plus onboard micron measurement.

Certifications & Compliance:

  • Meets ARI 780/790 Standard

User Reviews & Q&A Summary:

  • Common theme is "correct part" for the intended replacement, with users reporting it worked as expected after installation
  • Review feedback frequently mentions straightforward installation for a direct replacement
  • Value and fulfillment are recurring positives (good deal/price and fast shipping)

Product Highlights

Product Highlight: Max Pressure (PSI)650 MAX PSI      Product Highlight: Connection Size1/4" Connection

Specs

Type:

Pressure Switch

Max Pressure (PSI):

650

Connection Size:

1/4"

Cut-In PSI:

120

Cut-Out PSI:

90
