Note: Image displayed does not represent actual product.

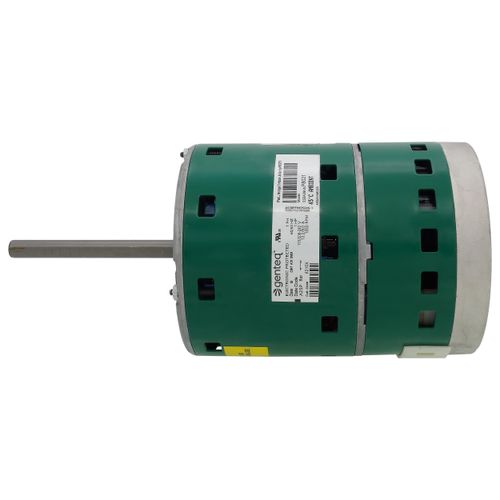

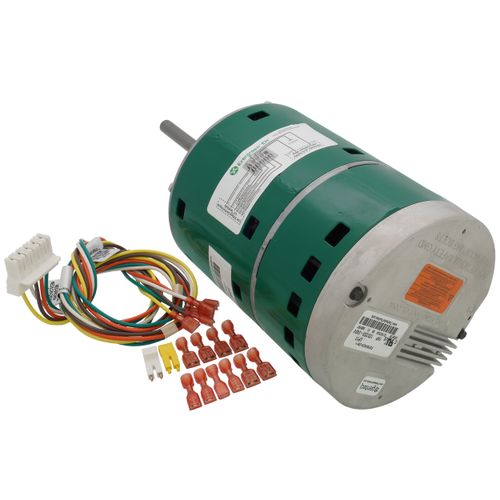

RESCUE EZ13 OAO ECM Blower Motor (115/208-230V, 3/4 HP, 1075 RPM)
- Evergreen EM - Dual Voltage Constant Torque ECM Replacement Blower Motor
- Pre-Programmed at the factor * Ready to use out of the box * Increase first time completion * Rotation sensing technology
- 5.6" Diameter - 48 Frame, Electronically Commutated (ECM), Electronically Protected
- Up to five constant torque settings controlled by 24 VAC inputs
- Fully variable (PWM compatible) from 600-1100 RPM
- Open Air Over, Class B Insulation, 45°C Ambient
- Ball Bearing
- Shaft: Single, 1/2" diameter, 5" length, 4.5" single flat
- 42" Leads
- Belly Band Mount (Belly Band Not Included)
Specifications:
- Class "B" insulation
- Single phase, 60 Hertz
- Thermal overload protection
Product Highlights
115/208/230VÂ Â Â
1050 RPM Â Â Â
1 HP Â Â Â
Round
12.2 AmpsSpecs
| Speeds: | 1 |
|---|---|
| Phase: | 1 |
| RPM: | 1050 |
| Amperage: | 12.2 |
| Type: | ECM |
| Enclosure Type: | Open Air Over |
| Duty: | Continuous Air Over |
| Insulation Class: | B |
| Voltage: | 115/208/230V |
| Mount: | Round |
| Bearings: | Ball |
| Frame: | 48 |
| Motor Orientation: | Horizontal |
| Poles: | 10 |
| Horse Power: | 1 |
