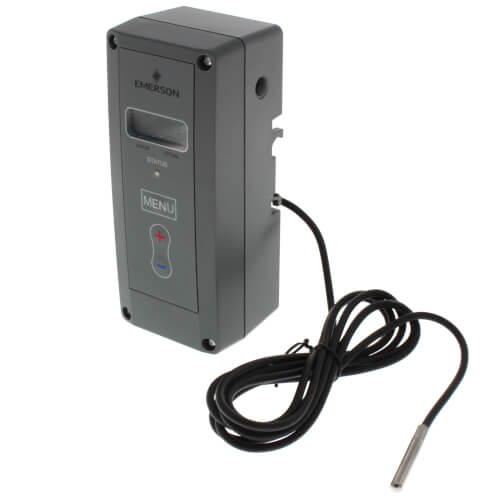

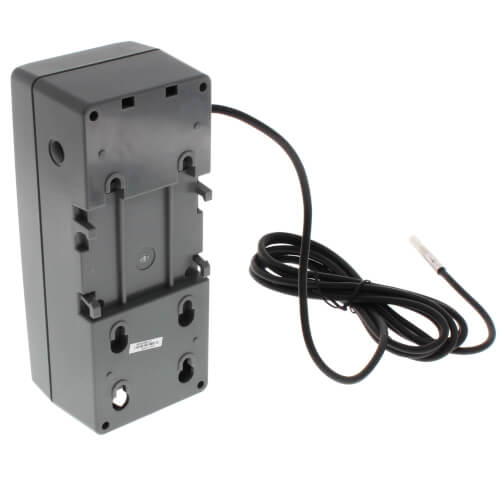

Superior Temperature Control and Accuracy for Both Refrigeration and Heating Applications...and It's Universal, Too!
Specifications
- Setpoint Range:-40° to 220°F (-40° to 104°C)
- Differential Range: 1° to 30°F (1° to 30°C)
- Supply Voltage: 24/120/208/240 VAC, 60Hz
- Sensor: Negative Temperature Coefficient with 7.5-Ft. Leads (Maximum length for remote temperature sensing 400 feet)
- Control Enclosure Ambient Temperatures
- Operating: -29° to 140°F (-34° to 60°C)
- Storage: -40° to 185°F (-40° to 85°C)
- Cover and Case: NEMA 1 high-impact plastic
- Thermoplastic: Non-flammable UL94V0
- Switch Action: SPDT
- Ambient Humidity: 0 to 95% RH, non-condensing
- Dimensions:6-3/4" L x 3" W x 2-9/16" D
Features
- Multiple Input Voltages (24/120/208/240 Volts)
- No Common Wire Required (Electrical load must be greater than 2.5 amps and uninterrupted)
- Electronic Temperature Accuracy
- Alarm Output (with selectable delay)
- Adjustable Anti-Short Cycle Delay
- Setpoint Locking Function
Applications
- Convenience Store
- Freezer Control
- Reach-In Coolers
- Supermarket Display Cases (meat/produce)
- Boiler Control
- Restaurant/Convenience Store
- Walk-In Coolers
- Condenser Fan Cycling
- Pump Control
- Space and Return-Air Temperature
Maintenance & Troubleshooting:
- This capacitor is typically replaced when diagnostics indicate a run capacitor is out of specification or when motor operation issues are traced to the dual run capacitor (diagnostic procedures are not provided in the supplied sources).
- If issues persist after replacement, confirm the installed capacitor matches the required MFD and voltage ratings and that all connections are correct per the equipment documentation.
Certifications & Compliance:
- Manufacturer listing states UL & cUL for these capacitors.
User Reviews & Q&A Summary:
- Review themes commonly describe it as a correct replacement capacitor that restores cooling operation when a failed capacitor is replaced.
- Many comments focus on getting the right part quickly and returning equipment to service, with frequent notes about straightforward replacement once the correct rating is confirmed.
Product Highlights
SPDTÂ Â Â
-40°F Min Temp
220°F Max TempSpecs
| Application: | Refrigeration |
|---|---|
| Temperature Range: | -40° to 220°F |
| Switch Action: | SPDT |
| Min Temp (F): | -40°F |
| Max Temp (F): | 220°F |
