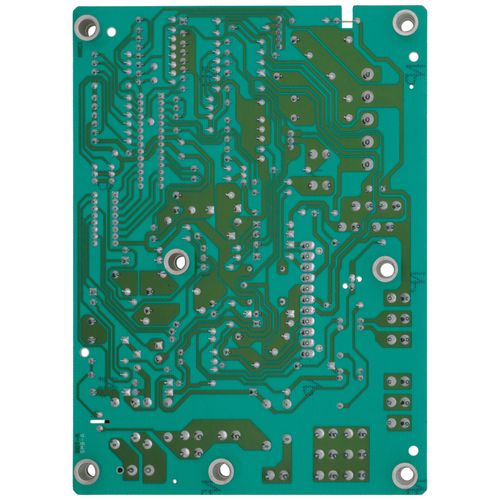

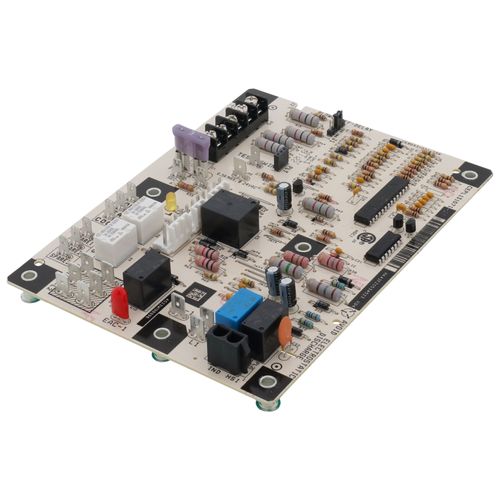

HK42FZ053 is an official OEM Control Board for Carrier HVAC equipment
- Robust Push Terminals
- Common-Sense LEDs
- Clean, Professional Installation
- Smaller Footprint
- Variable-Speed Fan Control
- Includes HZ311 TrueZONE panel, AT140 40VA transformer, C7735A discharge air sensor
Product Specifications
- Stages: Single Stage
- Operating Voltage: Input 24 Vac, 60 Hz
- Line Voltage: 115-230 Vac, 60 Hz
- Inducer Motor/Blower Motor: PSC
- Ambient Operating Temperature: -40 to 175°F (-40 to 80°FC)
- Humidity Range: 5% to 95% relative humidity (non-condensing)
Product Specifications:
- Description: 1/2 in. NPT x 1/2 in. NPT Intermittent Hot Surface Pilot Ignition SmartValve Control with fast-fast opening and 3.4 in. wc pressure regulator setting
- Flame Sense: Electrode
- Type of Gas: Natural
- Ignition System Type: Intermittent Hot Surface Pilot Ignition
- Ignition Sequence: Intermittent Pilot
- Ignition Source: Pilot
- Ignition Trials To Lockout: Continuous Retry
- PrePurge: None
- Body Pattern: Straight-through
- Opening Characteristics: Fast-Fast Opening
- Ignition Trial Time (sec): 90 sec
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz; 50 Hz
- Flame Failure Response Time (sec): 1.6 sec @ 3 µA
- Ambient Temperature Range (F): -40 F to +175 F
- Ambient Temperature Range (C): -40 C to +79 C
- Pressure Regulator Setting (psi): 3.4 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.45 kPa
- Inlet/Outlet Size (in.): 1/2 in. NPT x 1/2 in. NPT
- Maximum Capacity (ft³/hr): 200 ft³/hr
- Maximum Capacity (m³/hr): 5.7 m³/hr
- Minimum Capacity (ft³/hr): 20 ft³/hr
- Minimum Capacity (m³/hr): 0.6 m³/hr
- Maximum Capacity at 1 in. P.D. (ft³/hr): 150 ft³/hr
- Maximum Capacity at 1 in. P.D. (m³/hr): 4.2 m³/hr
- Pilot Gas Outlet: Yes
- Typical Ignition Hardware: Q3450
- Approvals, American Gas Association IAS: IAS Design Certified: C2030017
Maintenance & Troubleshooting:
- This capacitor is typically replaced when diagnostics indicate a run capacitor is out of specification or when motor operation issues are traced to the dual run capacitor (diagnostic procedures are not provided in the supplied sources).
- If issues persist after replacement, confirm the installed capacitor matches the required MFD and voltage ratings and that all connections are correct per the equipment documentation.
Certifications & Compliance:
- Manufacturer listing states UL & cUL for these capacitors.
User Reviews & Q&A Summary:
- Review themes commonly describe it as a correct replacement capacitor that restores cooling operation when a failed capacitor is replaced.
- Many comments focus on getting the right part quickly and returning equipment to service, with frequent notes about straightforward replacement once the correct rating is confirmed.
Product Highlights
24V
3
1 Heat/1 Cool
8.12" Height
1.86" Depth
8" WidthSpecs
| Application: | Zoning |
|---|---|
| Number of Zones: | 3 |
| Network Zoning: | No |
| Heat Pump Compatible: | No |
| Stages: | 1 Heat/1 Cool |
| Auto Changeover: | Yes |
| Voltage: | 24V |
| Discharge Air Temp Compatible: | Yes |
| Emergency Heat Switch: | No |
| Resettable Fuse: | Yes |
| Individual Zone Fan Control: | Yes |
| LEDs: | Yes |
| Height (Inches): | 8.12" |
| Depth (Inches): | 1.86" |
| Width (Inches): | 8" |
| Wiring: | 18-20 Gauge Solid |
| Hertz: | 60 50 |
| Temperature Range (F): | -40°F - 165°F |
| Includes: | DATS |
