The 50M56U-751 kit is a Single Stage HSI Integrated Furnace Control kit for Carrier.
Kit Includes:

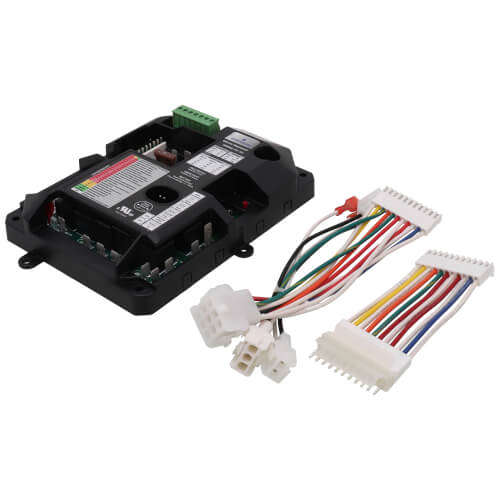

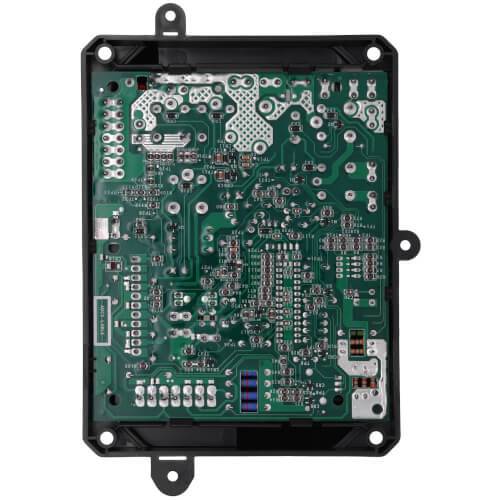

- 50M56-751 ignition control board
- Set of interconnect harnesses
- Manual
- Bag of accessories
Features:
- System Diagnostic LED with Fault Recall
- Low-Speed Continuous Fan Option
- 120 VAC Ignitor Output
- 120 or 24 VAC Humidifier Output
- 120 VAC Electronic Air Cleaner Output
- Self-Test Installation Routine
Product Specifications:
- Description: 1/2 in. NPT x 1/2 in. NPT Intermittent Hot Surface Pilot Ignition SmartValve Control with fast-fast opening and 3.4 in. wc pressure regulator setting
- Flame Sense: Electrode
- Type of Gas: Natural
- Ignition System Type: Intermittent Hot Surface Pilot Ignition
- Ignition Sequence: Intermittent Pilot
- Ignition Source: Pilot
- Ignition Trials To Lockout: Continuous Retry
- PrePurge: None
- Body Pattern: Straight-through
- Opening Characteristics: Fast-Fast Opening
- Ignition Trial Time (sec): 90 sec
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz; 50 Hz
- Flame Failure Response Time (sec): 1.6 sec @ 3 µA
- Ambient Temperature Range (F): -40 F to +175 F
- Ambient Temperature Range (C): -40 C to +79 C
- Pressure Regulator Setting (psi): 3.4 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.45 kPa
- Inlet/Outlet Size (in.): 1/2 in. NPT x 1/2 in. NPT
- Maximum Capacity (ft³/hr): 200 ft³/hr
- Maximum Capacity (m³/hr): 5.7 m³/hr
- Minimum Capacity (ft³/hr): 20 ft³/hr
- Minimum Capacity (m³/hr): 0.6 m³/hr
- Maximum Capacity at 1 in. P.D. (ft³/hr): 150 ft³/hr
- Maximum Capacity at 1 in. P.D. (m³/hr): 4.2 m³/hr
- Pilot Gas Outlet: Yes
- Typical Ignition Hardware: Q3450
- Approvals, American Gas Association IAS: IAS Design Certified: C2030017
Maintenance & Troubleshooting:
- This capacitor is typically replaced when diagnostics indicate a run capacitor is out of specification or when motor operation issues are traced to the dual run capacitor (diagnostic procedures are not provided in the supplied sources).
- If issues persist after replacement, confirm the installed capacitor matches the required MFD and voltage ratings and that all connections are correct per the equipment documentation.
Certifications & Compliance:
- Manufacturer listing states UL & cUL for these capacitors.
User Reviews & Q&A Summary:
- Review themes commonly describe it as a correct replacement capacitor that restores cooling operation when a failed capacitor is replaced.
- Many comments focus on getting the right part quickly and returning equipment to service, with frequent notes about straightforward replacement once the correct rating is confirmed.
Product Highlights
Hot Surface Ignition
Surface Mount MultipoiseSpecs
| Ignition Type: | Hot Surface Ignition |
|---|---|
| Operating Temp Range: | -40° to 176°F |
| Mount: | Surface Mount Multipoise |
Reviews
Clear filtersThere are no reviews yet.
