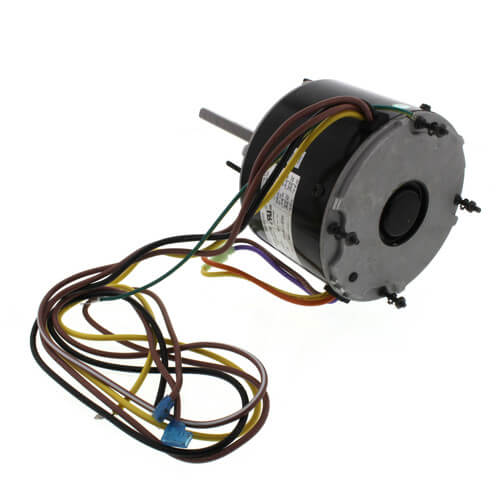

MARS up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
Features:
- All angle, sleeve or ball bearing
- Rheem mounting holes w/screws installed
- Reversible rotation
- Water slinger on shaft
- Thru bolt or band mounting Capacitor requirement noted on motor label
- Up/down design
- Double full flatted shaft
Specifications:
- Class “B” insulation
- Single phase, 60 Hertz
- Thermal overload protected
- Fan duty, continuous, air over
- 26 & 36 inch leads
Product Highlights
208/230V
1075 RPM
Reversible
1/4 HP
1.8 Amps
Specs
| Horse Power: | 1/4 |
|---|---|
| RPM: | 1075 |
| Voltage: | 208/230V |
| Bearings: | Sleeve |
| Enclosure Type: | Totally Enclosed Air Over (TEAO) |
| Rotation: | Reversible |
| Amperage: | 1.8 |
