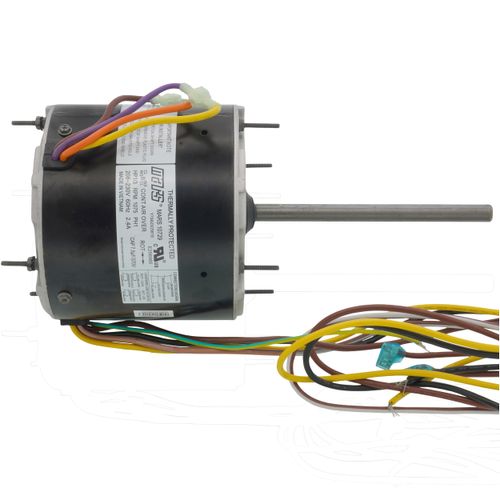

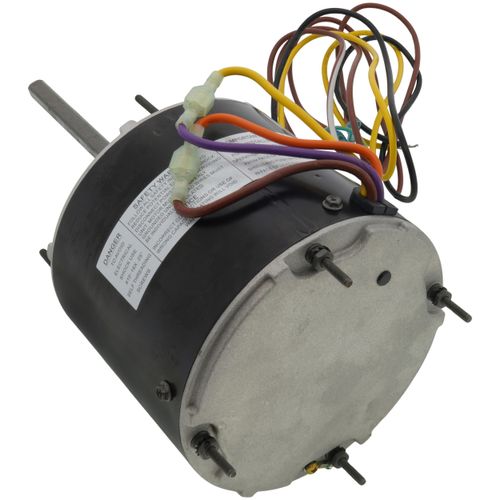

MARS up/down outdoor condenser fan motors are designed for either vertical shaft-up or shaft-down applications. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
Features:
- All angle, sleeve or ball bearing
- Rheem mounting holes w/screws installed
- Reversible rotation
- Water slinger on shaft
- Thru bolt or band mounting
- Capacitor requirement noted on motor label
- Up/down design
- Double full flatted shaft
Specifications:
- Class “B” insulation
- Single phase, 60 Hertz
- Thermal overload protected
- Fan duty, continuous, air over
- 26 & 36 inch leads
Maintenance & Troubleshooting:
- Pressure switches are commonly replaced when a furnace or HVAC system will not complete its startup sequence due to pressure/airflow proving issues.
- Customer feedback commonly associates replacement with resolving a "pressure switch" fault condition and restoring normal operation.
- The provided sources do not include diagnostic procedures; follow the equipment documentation for troubleshooting steps and verification before replacement.
User Reviews & Q&A Summary:
- Review themes indicate the part is commonly described as an exact fit and used as a direct replacement to get a furnace running again.
- Several reviews mention the unit returned to normal operation after installation, including clearing a fault condition related to the pressure switch.
- Additional feedback highlights ease of ordering and timely delivery, and notes that this part fit where other attempted parts did not.
Certifications & Compliance:
- Rheem includes a California Proposition 65 warning for this pressure switch kit on its parts listing
- No other separate certifications or listings are explicitly stated for this part in the provided sources
User Reviews & Q&A Summary:
- Common review themes: direct-fit replacement that fixes "no heat" situations and gets the furnace running again, often described as an easy swap once accessed
- Several reviewers note this is an updated version of the original design and may mount differently (users mention included hardware such as a longer screw/spacer to accommodate the revised mounting)
- Q&A themes emphasize that pressure switch ratings/markings are not interchangeable by appearance alone; customers are advised to confirm the correct part by furnace model/serial rather than substituting based on pressure markings
Product Highlights
208/230V
1075, 825 RPM
Reversible
1/3 HP
2.4 AmpsSpecs
| Horse Power: | 1/3 |
|---|---|
| RPM: | 1075 825 |
| Voltage: | 208/230V |
| Bearings: | Sleeve |
| Enclosure Type: | Totally Enclosed Air Over (TEAO) |
| Rotation: | Reversible |
| Amperage: | 2.4 |
