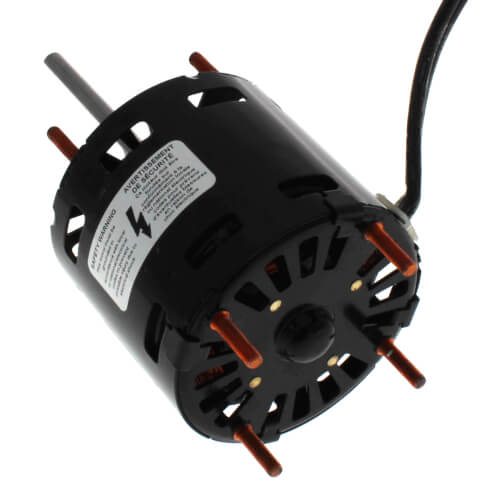

1-Speed 1550 RPM 1/20 HP CW Motor (115V)
Replaces: Bohn - 5KSM59JSK143S & 5KSM59JS5036S
- Reversible unless noted
- Class B Insulation
- Bearings have all angle thrust system
- Continuous duty, air over
- Designed for use with 370V capacitors
- 36" Line leads unless otherwise noted
- High efficiency economizer motors
- Automatic reset thermal overload protector
- Connection and capacitor infomation furnished in the nameplate data
- When furnished, the capacitor and its mounting hardware is supplied detached
- 2.5" diameter hub rings included
Specifications:
- Class "B" insulation
- Single phase, 60 Hertz
- Thermal overload protection
Product Highlights
115VÂ Â Â
1550 RPM Â Â Â
CWSE Â Â Â
1/20 HP Â Â Â
Extended Studs
2.1 AmpsSpecs
| Type: | Shaded Pole |
|---|---|
| Horse Power: | 1/20 |
| Voltage: | 115V |
| RPM: | 1550 |
| Speeds: | 1 |
| Amperage: | 2.1 |
| Enclosure Type: | Open Air Over |
| Rotation: | CWSE |
| Mount: | Extended Studs |
| Width: | 3" |
| OEM: | Bohn |
| Phase: | 1 |
| Bearings: | Sleeve |
| Max Ambient Temp (°F): | 104°F |
| Frame Size: | 3.3 |
| Duty: | Air Over |
| Frequency: | 60 Hz |
| Insulation Class: | B |
| Poles: | 4 |
| Overload Protection: | Thermally |
| Approvals: | UL |
Â
