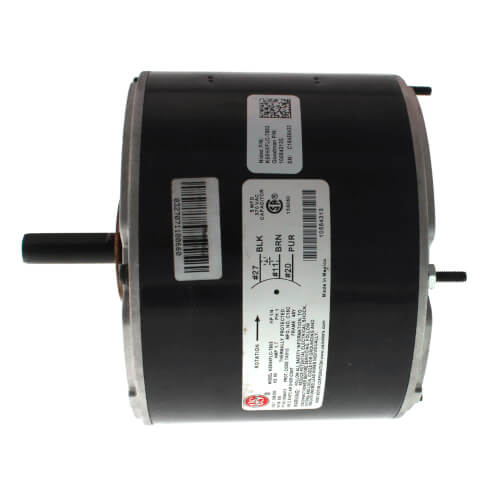

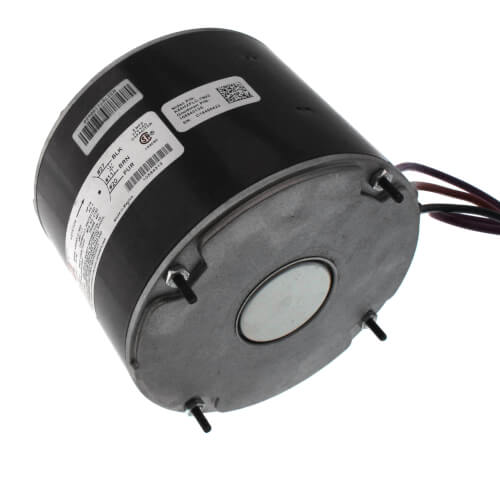

1/4 HP 830 RPM Cond. Motor (230V), 10584313S

SKU: 10584313S

$231.59each

Add to wishlist
Compare
10 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Reviews (0)
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “1/4 HP 830 RPM Cond. Motor (230V), 10584313S”

Your email address will not be published. Required fields are marked *

Description

Residential and commercial condensing unit fan motors to meet manufacturer's requirements.

  • 140F Ambient Design
  • Bearings have all angle thrust system
  • Class B insulation
  • Designed for use with 370C capacitors
  • Extended studs
  • 36" leads
  • Hubless lead end
  • Drain holes both ends
  • Reversible rotation
  • Automatic reset thermal overload protector
  • Continuous duty

  • Stud Extensions on Popular Models
  • Designed for use with 370v Capacitors
  • Class B Insulation
  • 24" Leads
  • Continuous Duty, Air Over
  • Bearings Have All Angle THrust System
  • Reversible Rotation
  • Automatic Reset Thermal Overload Protector
  • Connection and Capacitor Information Furnished in the Nameplate Data
  • 2.5" Diameter Hub Rings Included
  • All Angle Mount


Specifications:

  • Class “B” insulation
  • Single phase, 60 Hertz
  • Thermal overload protected
  • Fan duty, continuous, air over
  • Open construction
  • 26 & 30 inch leads
Product Highlights
Product Highlight: Voltage 208/230V                Product Highlight: RPM 825 RPM               Product Highlight: Rotation Reversible               Product Highlight: Horse Power 1/6 HP               Product Highlight: Amperage 1 Amps
Specs
Type:

Permanent Split Capacitor

Voltage:

208/230V

Horse Power:

1/6

RPM:

825

Phase:

1

Amperage:

1

Rotation:

Reversible

Enclosure Type:

Totally Enclosed Air Over (TEAO)

Shaft Diameter:

1/2"

Shaft Length:

6"
