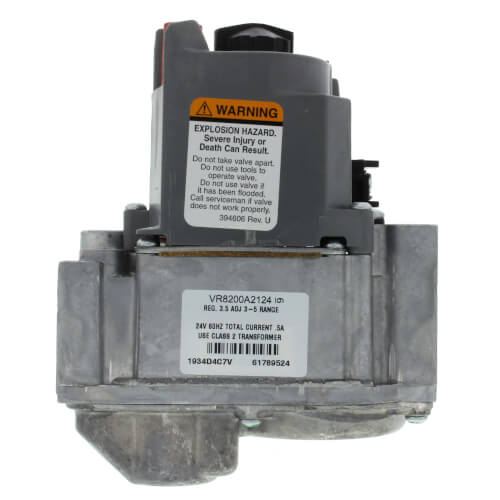

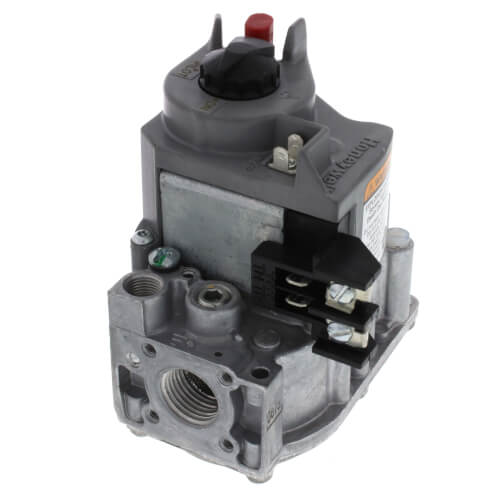

1/2″, 24 Vac Standing Pilot Gas Valve, VR8200A2124

SKU: VR8200A2124

$156.93each

Add to wishlist
Compare
15 People watching this product now!

Fast Shipping

Carrier information

20k products

Payment methods

24/7 Support

Unlimited help desk

2-day Delivery

Track or off orders

Reviews (0)
0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “1/2″, 24 Vac Standing Pilot Gas Valve, VR8200A2124”

Your email address will not be published. Required fields are marked *

Description

24 Vac Dual Standing Pilot Gas Valve with 1/2" x 1/2" inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting

Features

  • Combination gas controls for use in 24 Vac, gas-fired, standing pilot appliances with capacities from 20 to 200 cfh.
  • Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
  • Compact size.
  • Provide two automatic valves.
  • Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
  • Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
  • Meet codes requiring dual safety shutoff.
  • Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
  • LITE-RITE (OFF-PILOT-ON) lighting sequence.
  • All adjustments, wiring connections and pilot outlet are accessible from top of control.
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
  • Compatible with ECO connector.
Specifications:
  • Type: Single Stage
  • Opening Characteristics (standard, step): Standard
  • Capacity @ 1 in. p.d.: 130,000 BTU/hr; 20,000 BTU/hr minimum
  • Pressure Ratings: 1/2 psi, or 3.5 kPa
  • Pressure Regulator Setting: 3.5 in. wc (psi), or 0.87 kPa
  • Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
  • Pressure Tapping: 1/8 in. NPT with plug
  • Electrical Connections: Combination screw and 1/4 in. male quick connects
  • Electrical Ratings: 24 Vac
  • Frequency: 60 Hz
  • Anticipator Setting: 0.5 A
  • Temperature Range: 0° to 175°F, or -18° to +79°C
  • Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
  • Dimensions (in.): 5 3/16 in high x 4 1/8 in. wide x 3 1/4 in. deep


Performance Specs & Compatibility

  • Ports: 4-port manifold (high, low, vacuum, charge)
  • Use: Charging, recovery, evacuation with micron verification
  • Refrigerant library and temp inputs per Fieldpiece specifications

Why SM482V Stands Out

  • Full-featured SMAN platform with 4-port flexibility plus onboard micron measurement.

Certifications & Compliance:

  • Meets ARI 780/790 Standard

User Reviews & Q&A Summary:

  • Common theme is "correct part" for the intended replacement, with users reporting it worked as expected after installation
  • Review feedback frequently mentions straightforward installation for a direct replacement
  • Value and fulfillment are recurring positives (good deal/price and fast shipping)

Product Highlights

Product Highlight: Fuel TypeNatural Gas      Product Highlight: Inlet Size1/2" NPT, 1/2"      Product Highlight: Outlet Size1/2"      Product Highlight: Capacity (BTU)130000 BTU Capacity      Product Highlight: Voltage24V      Product Highlight: Ignition TypeStanding Pilot

Specs

Fuel Type:

Natural Gas

Body Pattern:

Straight-Through

Voltage:

24V

Inlet Size:

1/2" NPT

1/2"

Outlet Size:

1/2"

Ignition Type:

Standing Pilot

Capacity (BTU):

130000
